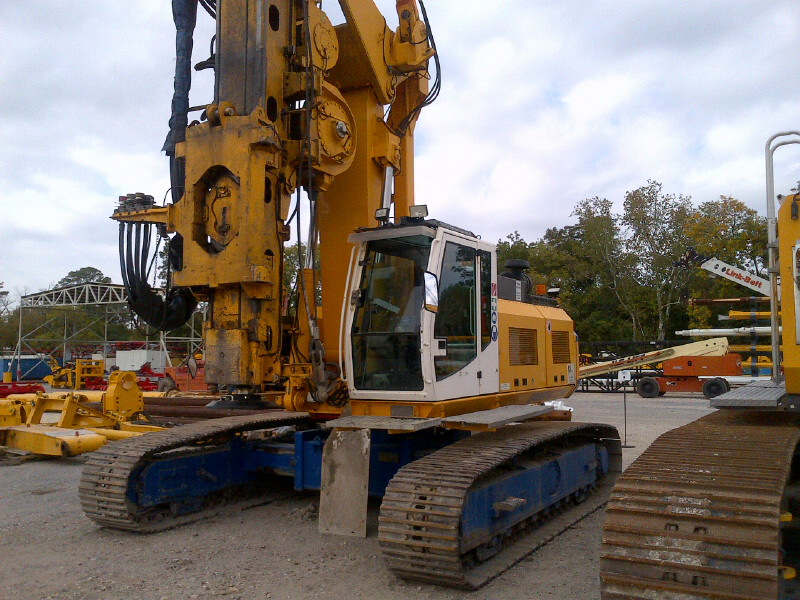

Bauer BG 22 H #0654
Vertical Drill Rigs
Primary Applications
- Drilled shafts for bridge approaches and roadside structures
- Soldier pile drilling on restricted-access shoring sites
- Cased bore construction in loose soils
- Transportation and utility foundation drilling
Downloads
What This Rig Does Well
The Bauer BG 22 H is a vertical drill rig sized for drilled foundation work where transport and setup constraints are tighter than heavy-rig spreads. It provides Kelly drilling capacity for open-hole and cased bore construction while keeping rotary torque in the large foundation-rig class. It is used on bridge approaches, roadside structures, soldier pile walls, and other civil work with limited staging room.
Performance Highlights
- KDK 232 S rotary setup
- Kelly setups: 30 m x 3 and 33 m x 3
- Rotary torque: 222 kNm
- Max pile diameter: up to 1,700 mm
Review the Equipment Fit
Send plans, specifications, geotechnical information, access constraints, and tooling or casing requirements so Pacific can review whether Bauer BG 22 H #0654 is a practical fit for the scope.
