Bauer BG12H
Vertical Drill Rigs
Primary Applications
- Utility shafts and light civil foundations
- Soldier piles on constrained shoring sites
- Compact cased drilling where footprint is limited
- Low-clearance foundation drilling
Quick Stats
- Rotary Setup
- KDK 125KL SO
- Kelly Configurations
- 28 m and 40 m
- Max Drill Tooling
- 900 mm
- Casing Adapter
- 1,000 mm
What This Rig Does Well

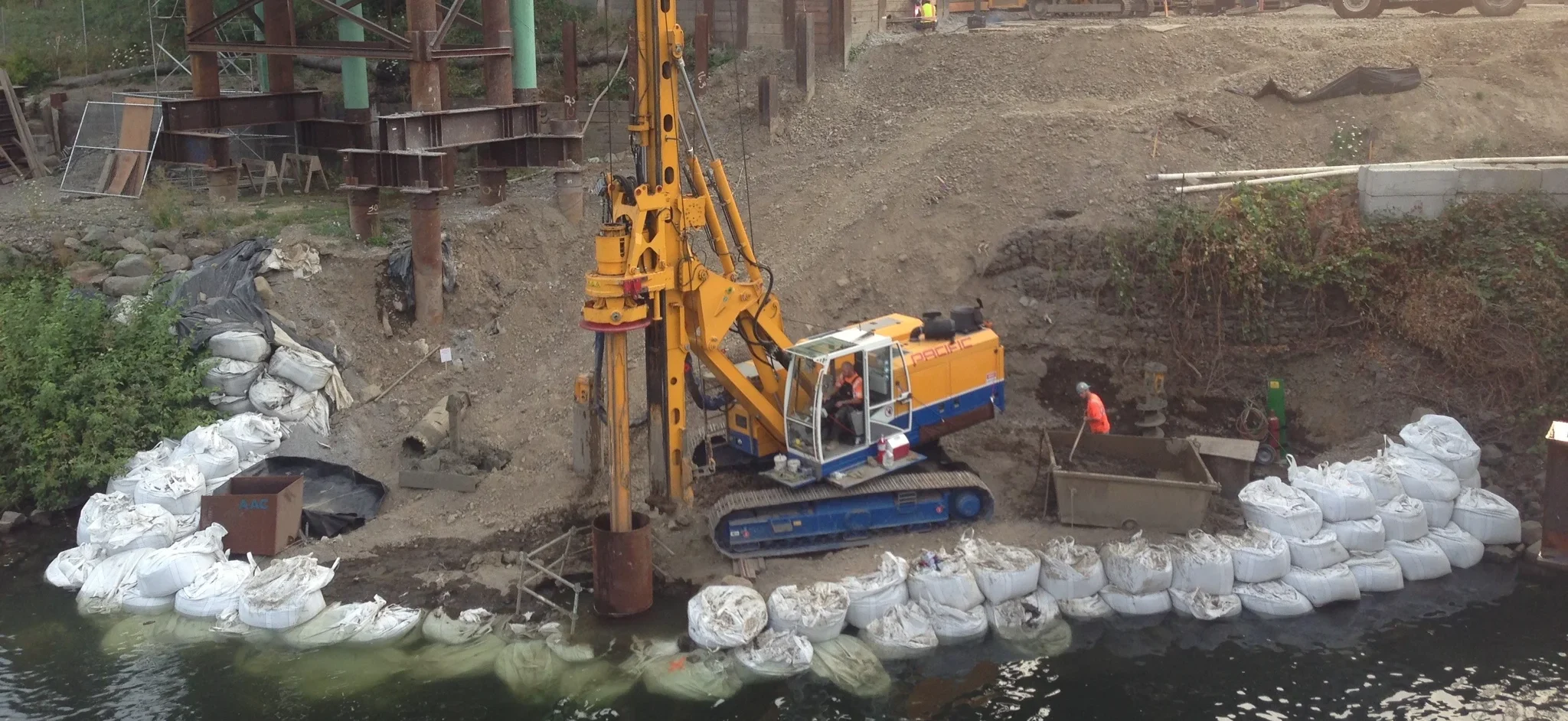

The Bauer BG 12 H is a compact vertical drill rig for smaller-diameter drilled foundation work. It performs Kelly drilling with shorter tooling ranges and supports cased bore construction where a reduced footprint is required. It is used on urban sites, utility structures, and tight shoring jobs where access or working radius limits larger rigs.
Typical Use Cases
- Utility shafts and light civil foundations where the drilling spread has to stay compact
- Soldier pile wall drilling on shoring jobs with restricted access or reduced working radius
- Compact cased bore construction where larger BG platforms are oversized for the site constraints
- Low-clearance or urban drilled-foundation work that still needs a purpose-built foundation rig
Performance Highlights
Augers & Buckets
Casing Systems
- Compact vertical rig format supports drilled-foundation work on restricted sites
- Kelly configurations at 28 m and 40 m cover shorter-depth foundation drilling ranges
- Configured for drill tooling up to 900 mm with a 1,000 mm casing drive adapter setup
- Rotary Setup
- KDK 125KL SO
- Kelly Depth Options
- 28 m x 4 and 40 m x 4
- Maximum Drill Tooling Diameter
- 900 mm
- Casing Drive Adapter
- 1,000 mm
- Footprint
- Compact BT35 carrier layout for reduced-site access
- Base / Carrier
- BT35
- Max Depth Range
- 28 m x 4 and 40 m x 4 Kelly configurations
- Maximum Tooling Diameter
- 900 mm
- Casing System Diameter
- 1000 mm adapter
- Crowd Stroke
- 4070 mm with stroke limiter in Kelly setup
- Drill Axis Range
- 2.81 m to 3.81 m
