Comacchio MC-22
Multipurpose Drill Rigs
Primary Applications
- Micropile installation with mixed mast angles
- Ground-anchor drilling on difficult wall geometry
- Soil nail drilling on support-of-excavation work
- Rotary and rotary-percussive drilling on consolidated ground
What This Drill Does Well

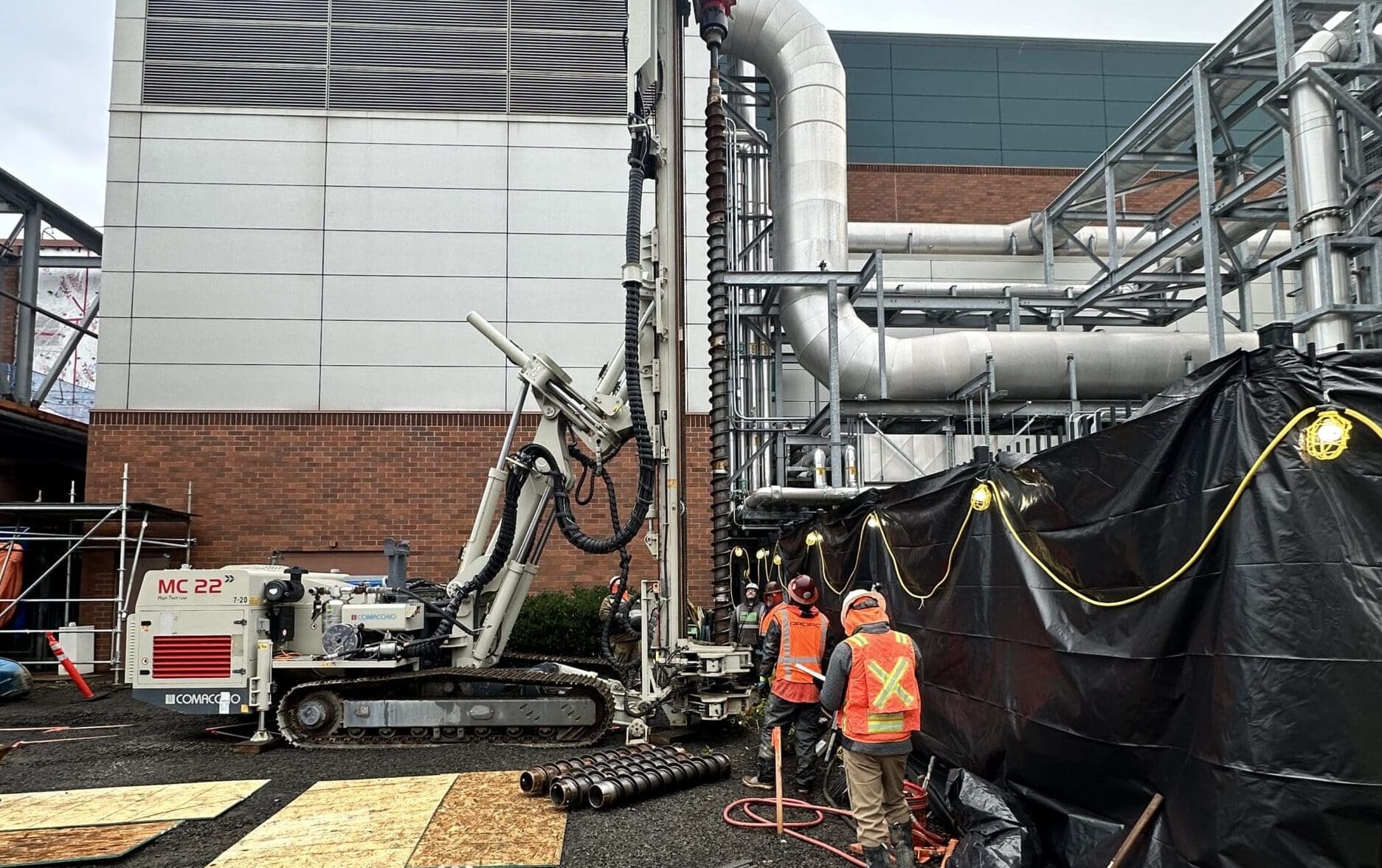

The Comacchio MC-22 is a multipurpose articulated drill rig used across a wide range of geotechnical drilling methods. Its mast articulation and tooling compatibility allow the crew to move between vertical, inclined, and difficult drill positions without giving up the feed and clamp capacity needed for production work. It is used on micropiles, anchors, and soil nails where access is constrained but the work still calls for a full-featured anchor drill rather than a compact attachment unit.
Performance Highlights
- 180-205 kW engine power
- 1,700-2,900 daNm rotary torque
- 4,750-10,200 mm mast feed
- 45-530 mm clamp range
Review the Equipment Fit
Send plans, specifications, geotechnical information, access constraints, and drilling or grouting requirements so Pacific can review whether Comacchio MC-22 is a practical fit for the scope.
