Soldier Pile Walls

Soldier pile and lagging walls support excavation beside buildings, roads and utilities.

Pacific Foundation’s soldier-pile experience includes steel piles, lagging and tieback anchors for excavation support. The wall and its support levels must work with the cut as it advances, leaving the required room for excavation and the structure that follows.

Where It Fits

01

Building Excavations

The wall retains soil beside below-grade foundations and parking structures.

02

Staged Cuts

Lagging follows excavation in controlled lifts; anchors or bracing are added where the wall design requires them.

03

Manageable Groundwater

The system requires groundwater to be addressed without relying on the lagging as a cutoff.

How It Works

Soldier pile walls use spaced vertical steel piles with lagging placed between them as excavation advances. The lagging retains the soil between piles and transfers lateral pressure to the steel members. The piles resist those loads through their embedded length and any tiebacks or internal bracing required by the wall design.

A cantilever wall relies on pile embedment without intermediate supports. Anchored or braced walls introduce support levels as the excavation deepens. These arrangements have different excavation and access requirements, so the shoring design and construction sequence need to be considered together.

The spaces between piles make staged lagging possible, but the wall does not form a continuous groundwater cutoff. Drainage, dewatering or a separate barrier may be required to address water entering or passing behind the excavation.

Excavation Sequence

The approved shoring sequence sets the permitted excavation lifts and support stages. Ground stand-up behavior affects how much face can be exposed and how promptly lagging must follow.

  1. Install the Piles

    Set the piles to the designed location, alignment and embedment before bulk excavation reaches the wall.

  2. Excavate and Lag

    Expose a limited lift and place lagging against the retained ground. Coordinate excavation and material handling so the face receives support at the required stage.

  3. Complete the Support Level

    Install specified tiebacks, wales, struts or other bracing. For anchors, allow for grouting, strength development, testing, review and lock-off before advancing as the design permits.

  4. Advance the Cut

    Continue through the permitted lifts while maintaining access and completing the required observations or movement checks.

Construction Planning

The wall line needs to account for buried utilities, nearby foundations and the space available for pile installation. A tied-back wall also needs an available drilling corridor behind the wall and the necessary anchor rights or approvals. Internal bracing changes the space available to excavation equipment and follow-on trades.

Working benches must allow lagging installation and anchor drilling at each support level. Excavation, lagging deliveries, steel handling and haul routes therefore belong in the same construction plan. The scope should identify who provides and maintains the platform or benches as the cut changes.

Groundwater requires its own evaluation. Lowering water levels can affect surrounding ground and nearby foundations, while uncontrolled seepage can interfere with excavation and lagging. Drainage and groundwater-control work need to follow the project design, with monitoring where specified.

Field Checks

The shoring package needs a clear connection between the installed wall, the excavation stages and the design requirements. The contract assigns inspection, monitoring and acceptance responsibilities.

Pile and Lagging Work Confirm layout, pile embedment and alignment, lagging details and the required support stage before the next cut. Installation records and observations document the work required by the specifications.
Anchor Hold Points Where tiebacks are used, specified testing, acceptance and lock-off are part of the excavation sequence. Drilling an anchor alone does not release the next excavation lift.
Movement Monitoring Specified survey points or instrumentation track the response of the wall and nearby improvements. Readings and action criteria are reviewed through the project’s assigned monitoring process.

Project Experience

Block 1 Apartments — Vancouver, Washington

Pacific installed soldier piles and lagging at Block 1 Apartments in Vancouver, Washington.

View Project
Bull Run KS-11 — Gresham, Oregon

Pacific installed soldier piles and lagging for the Bull Run KS-11 pile-wall package in Gresham, Oregon.

View Project
Washington Park Reservoir — Portland, Oregon

Pacific’s Washington Park Reservoir scope in Portland included temporary and permanent soldier-pile walls and tieback anchors within a broader foundation and shoring package.

View Project
Press Blocks — Portland, Oregon

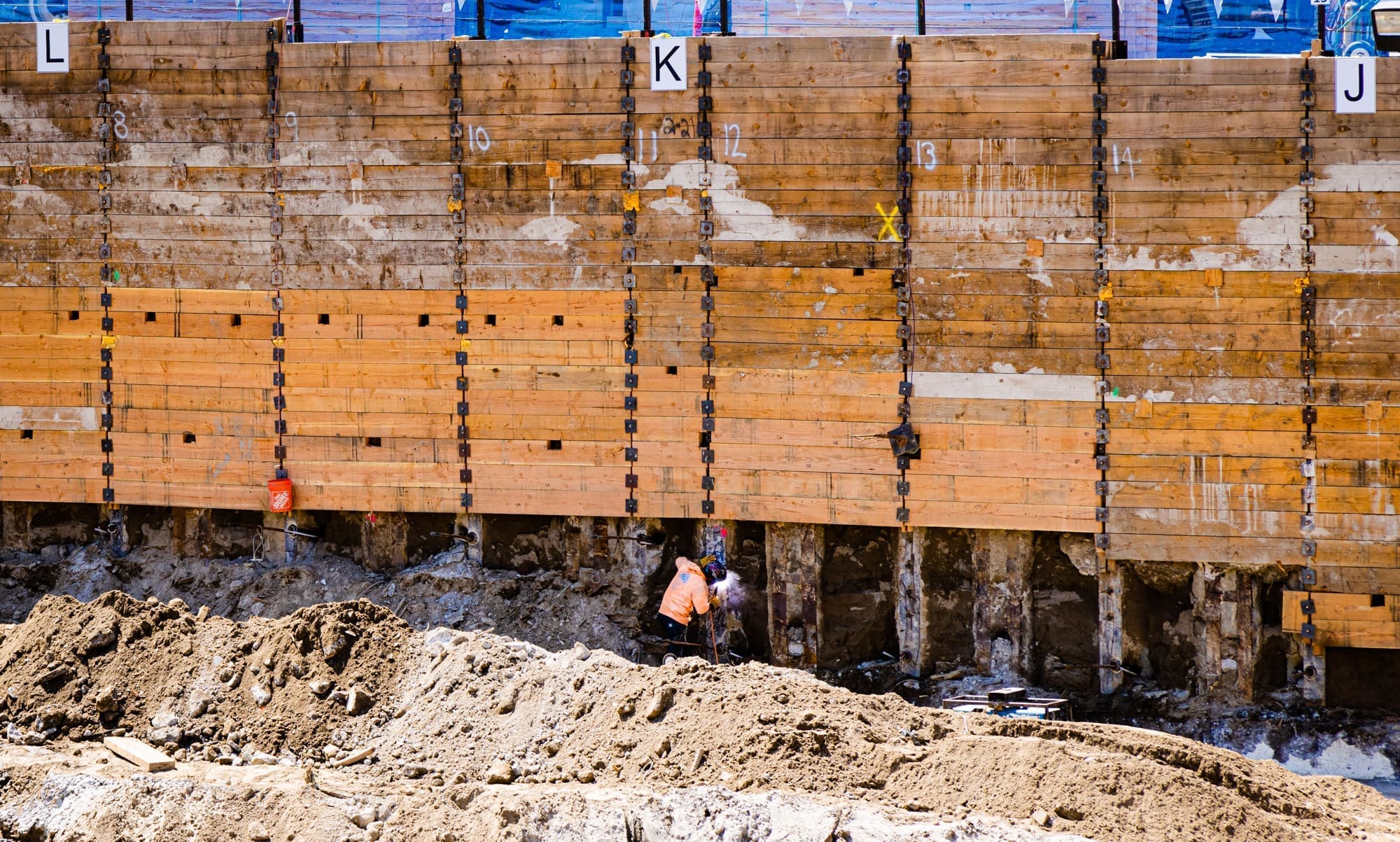

At Press Blocks in Portland, Pacific installed soldier piles, tiebacks and lagging for the excavation-support system.

View Project
Julia West House — Portland, Oregon

At Julia West House in Portland, Pacific installed soldier piles, CFA shafts, lagging and tiebacks on a constrained downtown site.

View Project
Shiley Marcos Center — Portland, Oregon

At the University of Portland’s Shiley Marcos Center, Pacific installed underpin anchors, existing-wall and shoring-wall tiebacks, soldier piles and wood lagging.

View Project

Installation Equipment

Pile-installation equipment works along the wall before bulk excavation, with lifting equipment handling the steel members. The installation plan needs space for pile storage, drilling or driving operations and any concrete placement required by the pile details.

As excavation deepens, excavators and lifting equipment handle lagging while anchor drills work from the available benches. Grout plants, tendon storage and stressing equipment support anchored walls. Keeping that access workable through successive cuts is a practical part of the shoring scope.

Related Services

Tieback Systems

Explore wall anchors and support stages.

View Service

Secant Pile Walls

Compare an overlapping drilled wall.

View Service

Common Questions

When are tiebacks needed?

Tiebacks or internal bracing are used when the wall design requires support beyond the embedded piles. Anchor rights, utilities and nearby foundations affect whether tiebacks are feasible.

Does lagging stop groundwater?

Lagging is not a continuous cutoff. The project may need drainage, dewatering or another water-control system, with the effects on surrounding ground considered in the design.

When can the next lift proceed?

Only as allowed by the approved shoring sequence. At each required support level, installation, testing, acceptance and lock-off or completion of bracing govern when the next lift can proceed.

How does this differ from a secant wall?

Soldier piles are spaced with lagging installed between them as excavation advances. Secant piles overlap to form a continuous drilled wall; its structural and water-control requirements still depend on the design.

Talk to an Estimator

Send the wall plans, geotechnical report and bid date. Include excavation depth, nearby structures and restrictions on tieback anchors.
