Comacchio MC-28

Key Specifications

Max Drill Length Engine Power Rotary Torque
30m 300 Horsepower 17,700 ft/lbs

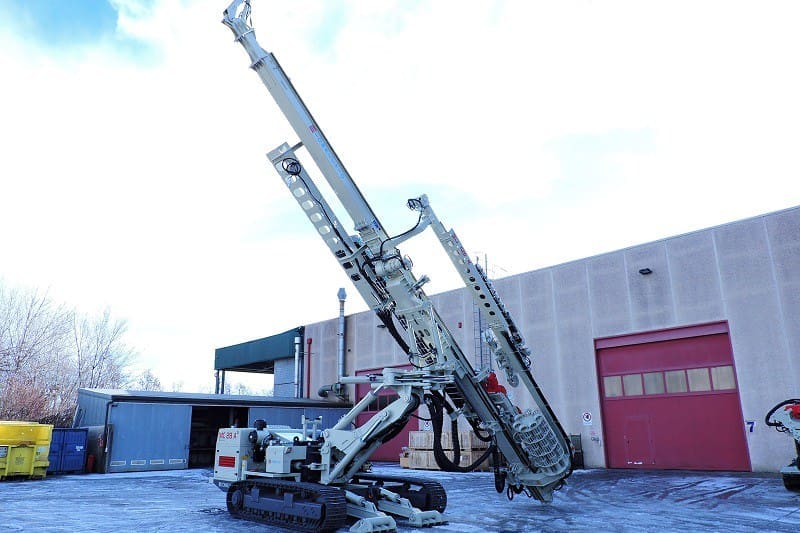

The Comacchio MC28, emerging as a heavy-duty version of the MC22, is engineered to tackle particularly demanding tasks even in space-constrained environments. Powered by a 225 kW engine, it boasts a robust structure complemented by a 14-ton mast and reinforced clamps, underscoring its readiness for hefty works.

Key Features and Specifications:

  • Engine Power: 225 kW.
  • Mast: 14-ton capacity.
  • Drilling Applications: Ideal for a multitude of civil engineering projects including micropiles, anchors, jet grouting, drainages, soil nailing, and general consolidations.
  • Mast Articulation System: Innovative design facilitating versatility in application.
  • Hydraulic Circuits: Advanced modular design enabling utilization of a broad spectrum of drilling accessories.
  • Drilling Systems: Supports rotary and rotary-percussive drilling, adaptable to a wide range of rotary heads, hydraulic drifters, double head systems, water and mud pumps, winches, and rod carousels.
  • Controls: Option for hydraulic proportional servo-assisted controls or radio control for enhanced operational ease and safety.
  • Customization: Like other Comacchio rigs, the MC28 can be tailored to meet specific project requirements.

The MC28’s modular hydraulic circuits and diverse drilling system compatibility highlight its adaptability, making it a suitable choice for various civil engineering projects. Its robustness coupled with innovative control and mast articulation systems contribute to its efficacy and safety in challenging drilling scenarios, rendering it a reliable tool in a wide range of ground improvement and deep foundation tasks.
