Klemm 805-2

Key Specifications

Operating Pressure  Engine Power Tractive Force
320 Bar  173 Horsepower 110 kNm

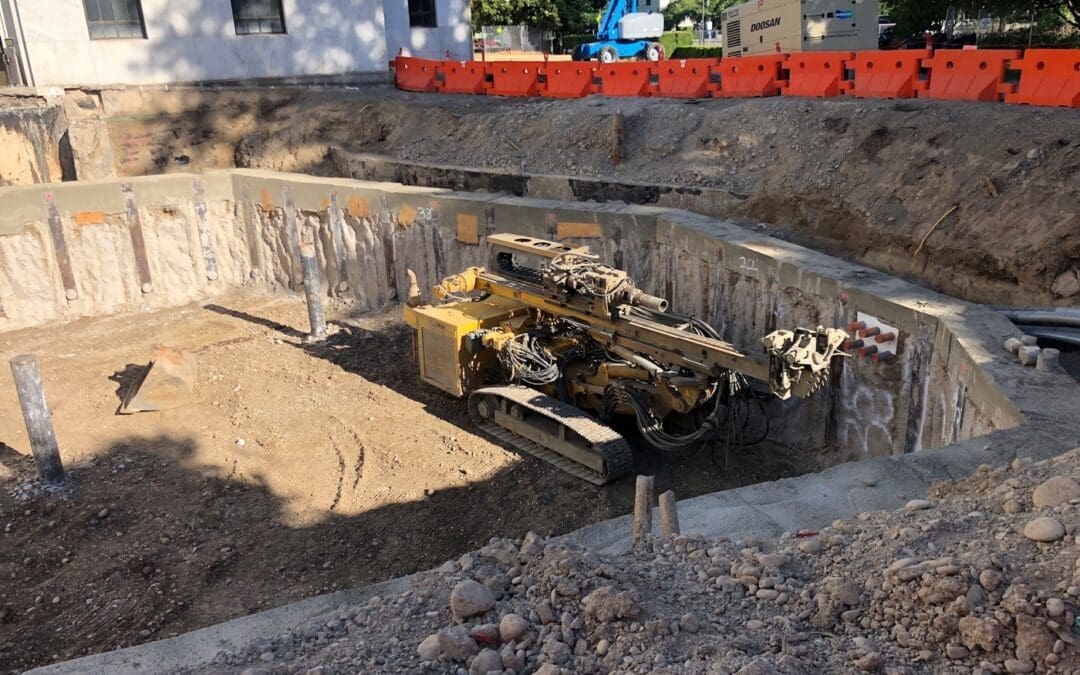

The Klemm 805-2 is similar to our other Klemm 806 drill rigs, except that it is more compact, lighter in weight  and has simpler kinematics. This rig can be setup with either a dual rotary or top hammer system and is ideal for soil nails and tieback anchors.

  • Weight: 17.0 tons.
  • Dimensions: Length: 8450 mm, Width: 2300 mm, Height: 3000 mm.
  • Engine: Volvo Penta TAD 571, 129 kW.
  • Drill Tool Capacity: The rig can hold drill tools up to a diameter of 152 mm and 6 m or 3 m in length.
  • Rotary Drive & Hydraulic Hammer: KH 25 rotary drive with 25 kNm torque and 103 rpm or a KD 1011 hammer drill with 11 kNm torque and 180 rpm can be installed.
  • Efficiency: Features like load-sensing technology, the patented power sharing system, and the Energy-Efficiency-Package (EEP) make this rig resource-saving and capable of handling heavy loads for its size​.
