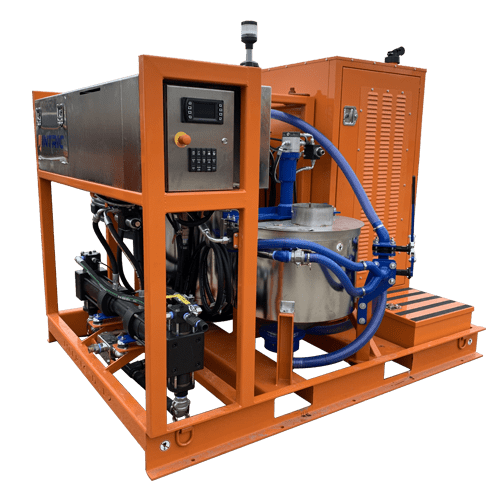

Intric D12 Grout Plant
Mix-Pump Units
Primary Applications
- Micropile grout production and pumping
- Ground-anchor and tiedown grouting
- High-shear mixing for cementitious suspensions
- Grouting work on restricted or mobile job setups
What This Equipment Does Well
The Intric D12 is a skid-mounted grout plant that combines a high-shear colloidal mixer, storage capacity, and a piston pump in one package. It mixes cementitious grout, records pumping data, and delivers grout for higher-output anchor and micropile work from a compact frame. It is used on micropiles, tiedown or anchor programs, and other grouting scopes where batch control and mobility both matter.
Performance Highlights
- Up to 60 gal/min flow and 1,800 psi pressure
- 60.84 gal mixing tank
- Kubota Tier 4 Final diesel engine rated at 49.5 hp
- 72 in x 95 in x 80 in overall dimensions
Review the Equipment Fit
Send plans, equipment requirements, site access, ground conditions, and operating constraints so Pacific can review whether Intric D12 Grout Plant is a practical fit for the scope.
