Bauer BG 24 H
Vertical Drill Rigs
Primary Applications
- Drilled shaft and foundation scopes that need vertical drilling review
- Soldier pile drilling and excavation-support layout review
- Cased bore planning in loose, wet, or variable ground
- CFA, auger-cast, or related tooling review when the setup is defined
Downloads
Quick Stats
- Equipment Class
- Mid-size vertical drill rig
- Configuration
- BG 24 H
- Primary Fit
- Kelly drilling and cased vertical drilling
- Planning Inputs
- Geometry, casing, access, work pad, groundwater, and tooling
What This Rig Does Well

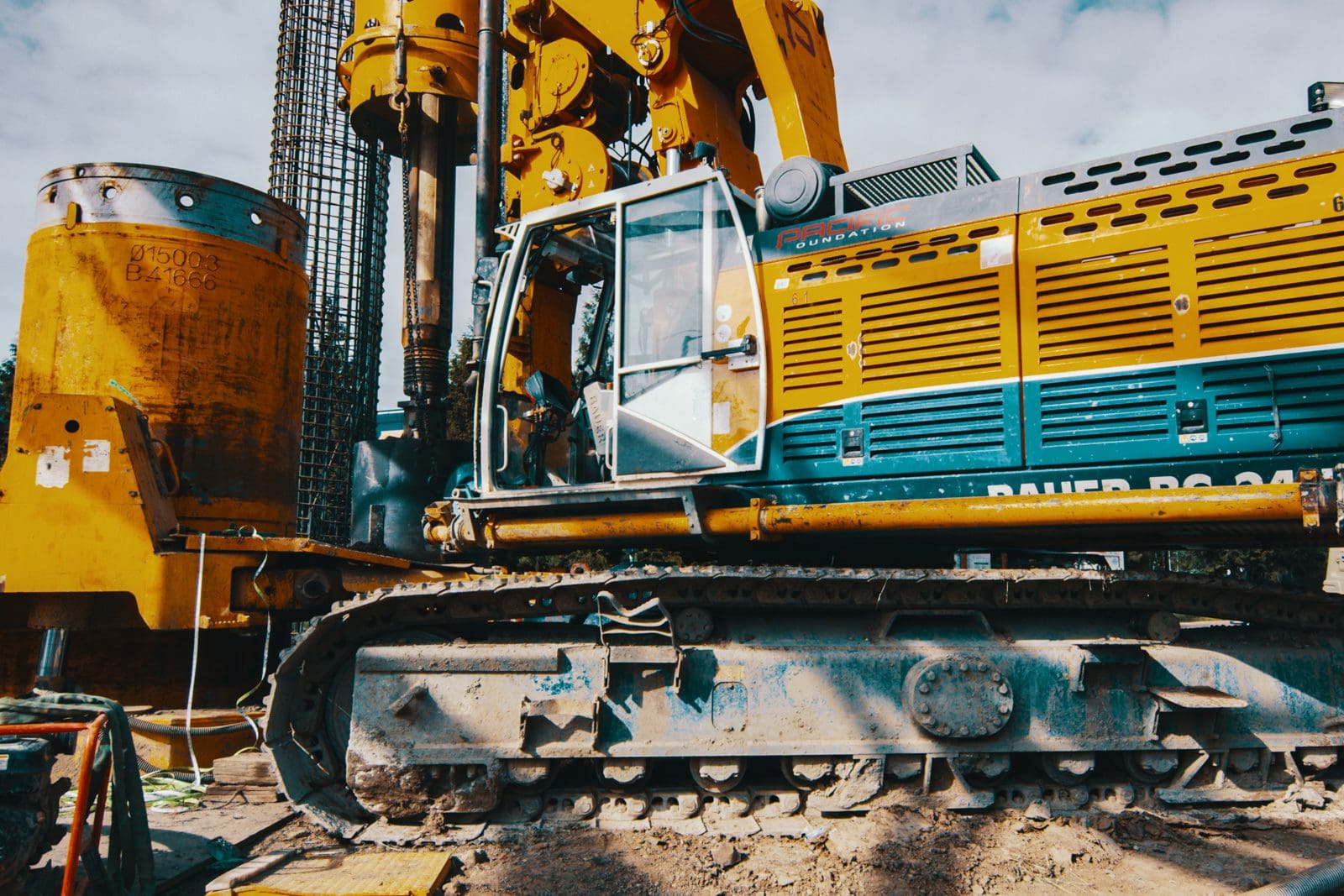

The Bauer BG 24 H is a mid-size H-kinematics vertical drill rig for drilled foundation and shoring work. Pacific reviews rig configuration, tooling, access, casing, groundwater, and work-pad constraints when planning shaft, soldier pile, and other vertical drilling work.
Typical Use Cases
- Reviewing whether a mid-size vertical drilling platform fits the shaft, pile, wall, or foundation geometry shown in the drawings.
- Planning casing, tooling, and drilling approach around unstable ground, groundwater, obstructions, utilities, or adjacent structures.
- Coordinating working platform, access, setup area, and material handling before mobilization.
- Comparing BG 24 H drilling configurations with compact rigs and larger BG platforms based on access, tooling, ground conditions, and the work plan.
Performance Highlights
Casing Systems
Augers & Buckets
CFA Tooling
- BG 24 H configurations are planned around project-specific tooling, access, and working-platform conditions.
- The BG 24 H is an H-kinematics rotary drilling rig with BT 75 and BT 85 carrier references.
- H-kinematics supports rigging, transport, and relocation planning on constrained sites.
- Method selection depends on tooling, ground conditions, casing needs, and the project drawings.
- Primary Review
- Kelly drilling and cased vertical drilling
- Related Tooling Review
- CFA, CCFA, cased CFA, augers, buckets, and casing where specified
- Work Planning
- Review drawings, geotechnical report, shaft or pile schedule, casing needs, and site access
- Setup Review
- Confirm working platform, travel path, setup area, and support equipment before pricing or mobilization
- Configuration Note
- Final setup depends on carrier, tooling, and project constraints
Review the Equipment Fit
Send plans, specifications, geotechnical information, access constraints, and tooling or casing requirements so Pacific can review whether Bauer BG 24 H is a practical fit for the scope.
