Bauer BG 15 H
Vertical Drill Rigs
Primary Applications
- Compact drilled foundation review where access or setup area controls rig choice
- Soldier pile and retaining-wall drilling review on constrained sites
- Cased bore planning where ground or groundwater conditions affect the setup
- Utility, plant, and smaller civil drilling scopes that still need purpose-built vertical drilling equipment
Downloads
Quick Stats
- Equipment Class
- Compact vertical drill rig
- Configuration
- BG 15 H
- Carrier Reference
- BT 50 base carrier
- Planning Inputs
- Geometry, casing, access, work pad, utilities, and tooling
What This Rig Does Well

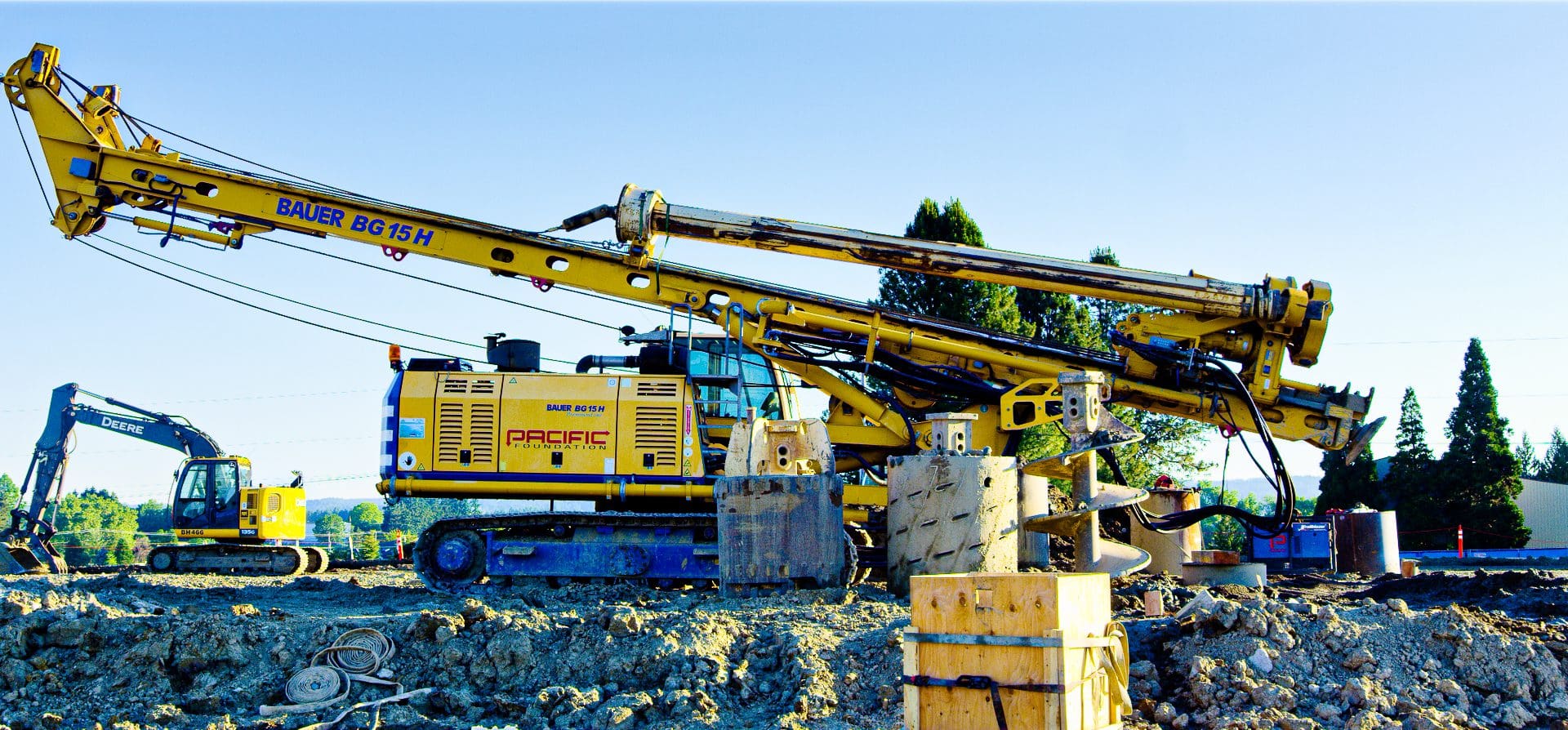

The Bauer BG 15 H is a compact vertical drill rig for drilled foundation and shoring work on constrained sites. Pacific reviews foundation geometry, casing, tooling, working radius, access, utilities, and work-pad conditions when planning a project-specific configuration.
Typical Use Cases
- Reviewing whether a compact vertical drilling platform fits the shaft, pile, wall, or foundation geometry shown in the drawings.
- Planning casing, tooling, and drill approach around tight access, adjacent structures, utilities, unstable ground, or groundwater.
- Comparing BG 15 H drilling configurations with compact rigs and larger BG platforms based on access, tooling, ground conditions, and the work plan.
- Coordinating work pad, travel path, setup area, spoils, concrete placement, and material handling before mobilization.
Performance Highlights
Casing Systems
Augers & Buckets
- BG 15 H configurations are planned around project-specific tooling, access, and working-platform conditions.
- The BG 15 H uses a BT 50 base carrier for rotary drilling configurations.
- Compact H-kinematics supports access, transport, and setup planning on constrained sites.
- Method selection depends on the drawings, geotechnical report, casing needs, and tooling package.
- Primary Review
- Kelly drilling and cased vertical drilling
- Related Tooling Review
- Augers, buckets, casing, and other specified tooling
- Work Planning
- Review drawings, geotechnical report, shaft or pile schedule, casing needs, utilities, and access
- Setup Review
- Confirm work pad, travel path, setup area, working radius, and support equipment before pricing or mobilization
- Configuration Note
- Final setup depends on carrier, tooling, project constraints, and field conditions
Review the Equipment Fit
Send plans, specifications, geotechnical information, access constraints, and tooling or casing requirements so Pacific can review whether Bauer BG 15 H is a practical fit for the scope.
